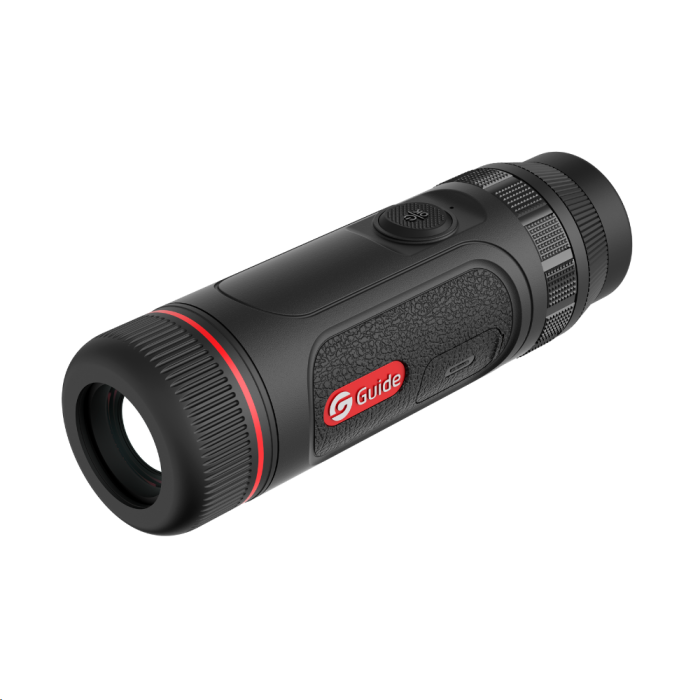

THERMAL MONOCULAR TE421

The TE Series Handheld Thermal Imaging Monocular is your compact and reliable night vision solution. Designed with a 400x300 infrared detector and a 25mm lens, it delivers a powerful detection range of up to 1400 yard. Its 0.32'' AMOLED 800×600 ensures clear infrared image viewing without eye strain.

Perfect for extended use, this pocket-sized device offers up to 1 hour of operation with just a quick 10-minute charge. Lightweight, portable, and efficient, the TE Series is the ultimate thermal monocular for outdoor enthusiasts and night hunters.

SHARP & LIGHTWEIGHT
400×300@12μm Sensor Resolution
1400 yd Detection Range
0.32'' AMOLED 800×600 full-color screen
One-button control for smooth operation
25mm; F1.0 Focal length
25Mk NETD

SPECS:

Sensor

• Type Uncooled VOx Infrared Detector, 8 to 14μm
• Resolution 400×300@12μm
• NETD 25mK
• Frame rate 50Hz

Lens

• Objective lens 25mm, F1.0
• Field of view 11°×8.2°
• FOV m@100m 19×14
• Magnification 1.9x~7.6x
• Detection range 1300m/1400yd
• Focus Manual

Display

• Display type 0.32'' AMOLED 800×600
• Color palettes White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
• Eyepiece Eye relief: 25mm; Diopter: -5 to +5; Zoom: 14x

Hardware

• WIFI 2.4G, 5G
• Interface USB Type-C, Support charging
• Others Microphone, Bluetooth

System

• Recording function Photo/Video (Audio recording included)
• Memory capacity 16GB

Power

• Battery type Built-in battery
• Operating time 5 hours (Support 20W quick charging)

Environmental

• Operating temp. -20°C to 50°C / -4°F to +122°F
• Encapsulation IP67

Physical

• Weight (g/oz) 295/11.11
• Size (mm/in) 47×47×155/1.85×1.85×6.10
• Standard Device, Lens cover, Eye mask, Wrist strap, Quick charging adapter, USB Type-C cable, Quick use guide, Safety Information Manual, Warranty card
