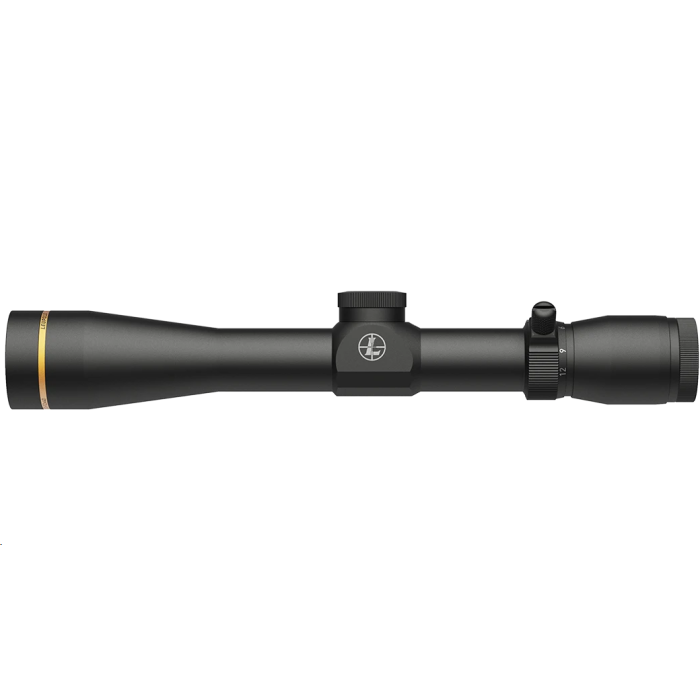

VX-4HD 3-12X40 (30MM)

A capped elevation adjustment delivers a zero-once, hunt-always setup for hunters who value simplicity and durability.

Available in additional 3-12x and 4-16x configurations, its 4:1 zoom range allows smooth transitions from close-range shots to longer distances, with an integrated throw lever for fast magnification changes.

Built to withstand harsh conditions, the VX-4HD features a fast-focus eyepiece and a rugged construction that’s waterproof, fogproof, and shockproof. Backed by Leupold’s lifetime guarantee, it’s a scope you can rely on for generations.

The VX-4HD delivers clarity, precision, and rugged reliability so you can leave no doubt.

FEATURES:

• 4:1 Zoom Ratio:  A versatile 4:1 zoom ratio gives you 4 times more magnification at high power than at low power, so you can adjust your magnification to find the perfect balance between magnification and field of view for any situation.
• Elite Optical System  Leupold’s Elite Optical System offers excellent dawn-to-dusk light transmission for a bright image when it matters most, elite-level glare reduction in harsh light, and the resolution and clarity that diehard hunters and shooters demand.
• High-Definition Performance:  Experience the difference with Leupold's High-Definition lenses, which provide unparalleled clarity, color, and image resolution at all magnification levels.
• Integrated Throw Lever:  The integrated, low-profile throw lever makes changing magnifications quick and easy.
• Motion Sensor Technology (MST):  Motion Sensor Technology (MST™) extends battery life by automatically deactivating illuminated reticles after five minutes of inactivity and then reactivates instantly as soon as movement is detected.
• Waterproof, Fogproof, & Shockproof:  Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.

SPECS:

• Elevation Adjustment Type: Pop-Up Rezero
• Magnification Type: Variable
• Reticle Focal Plane Second Focal Plane
• Reticle: Hunt-Plex
• Rezero Type: Pop-Up
• Reticle Type: Illuminated
• Windage Adjustment Type: Pop-Up Rezero
• Weight (oz): 14.6
• Elevation Adjustment Value per Click: 1/4MOA
• Elevation Adjustment Range (MOA): 65
• Elevation Adjustment Range (MIL): 18.9
• Elevation Adjustment Range (cm @ 100m): 289
• Elevation Adjustment Per Revolution: 20 MOA
• Elevation Dial Travel Limit: 38MOA
• Windage Adjustment Value per Click: 1/4MOA
• Windage Adjustment Range (MOA): 65
• Windage Adjustment Range (MIL): 18.9
• Windage Adjustment Range (cm @ 100m): 189
• Windage Adjustment Per Revolution: 20 MOA
• Magnification Max: 12
• Magnification Min: 3
• Objective Lens Diameter (mm): 40
• Linear FOV Low Mag (ft@100yds): 33.5
• Linear FOV High Mag (ft@100yds): 8.4
• Angular FOV Low Mag (Degrees): 6.4
• Angular FOV High Mag (Degrees): 1.6
• Eye Relief Low Mag (in): 4.0
• Eye Relief High Mag (in): 3.9
• Fixed Parallax-Free Distance (yd): 150



Hunt-Plex

• Bold, tapered pickets with open center
• Easy to find aiming point in low-light conditions
• Fine line center for precision aiming at long distances or small targets
• Top line tapers downward slightly with no picket, keeping the field of view clear and supporting precision aiming and low-light visibility
